Product Features
- Ultra fast response, up to 50μ S;
- 01
- High tech ultra high definition OLED display screen, intuitive and easy to operate
- 02
- Automatic compensation technology for light intensity, independently developed algorithm for adjusting light projection period
- 03
- Independently developed high-tech LED modules and control algorithms
- 04
50 Μ Rapid response
can achieve faster signal amplification and transmission, while responding to various abnormal situations in a more timely manner, improving system stability and reliability.

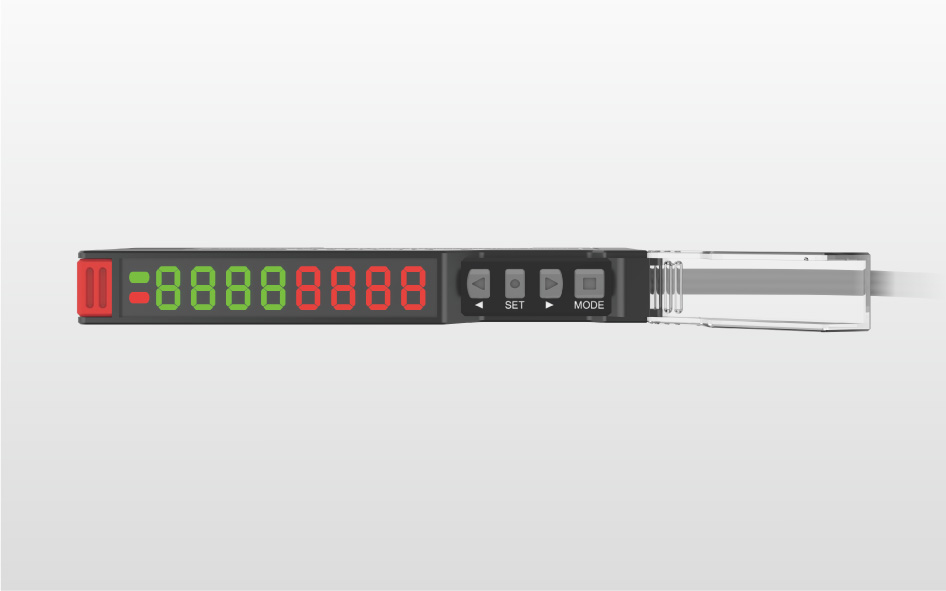

Ultra high definition OLED display screen
breaks through the traditional 7-segment character display, adopts high-performance OLED display screen, intuitive display, easy to understand, and easy to operate.

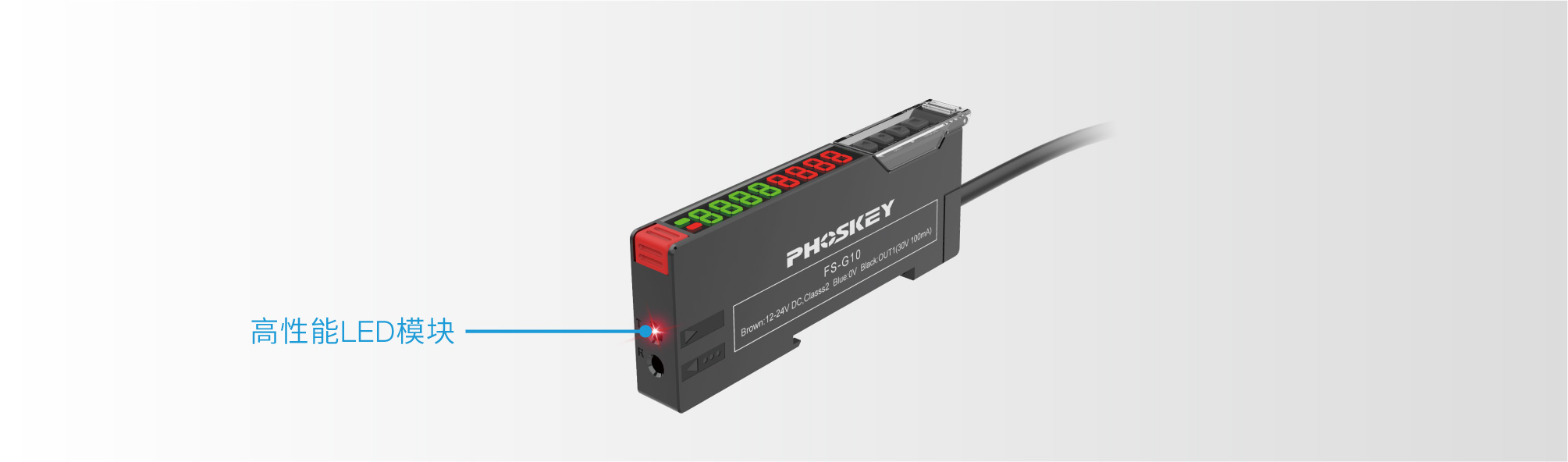

New LED light emitting module
The new LED light emitting module adopts efficient light emitting materials and design, and independently develops high-performance LED modules and control algorithms, greatly improving its power, providing higher beam quality and longer service life, effectively reducing the cost of system maintenance and replacement.

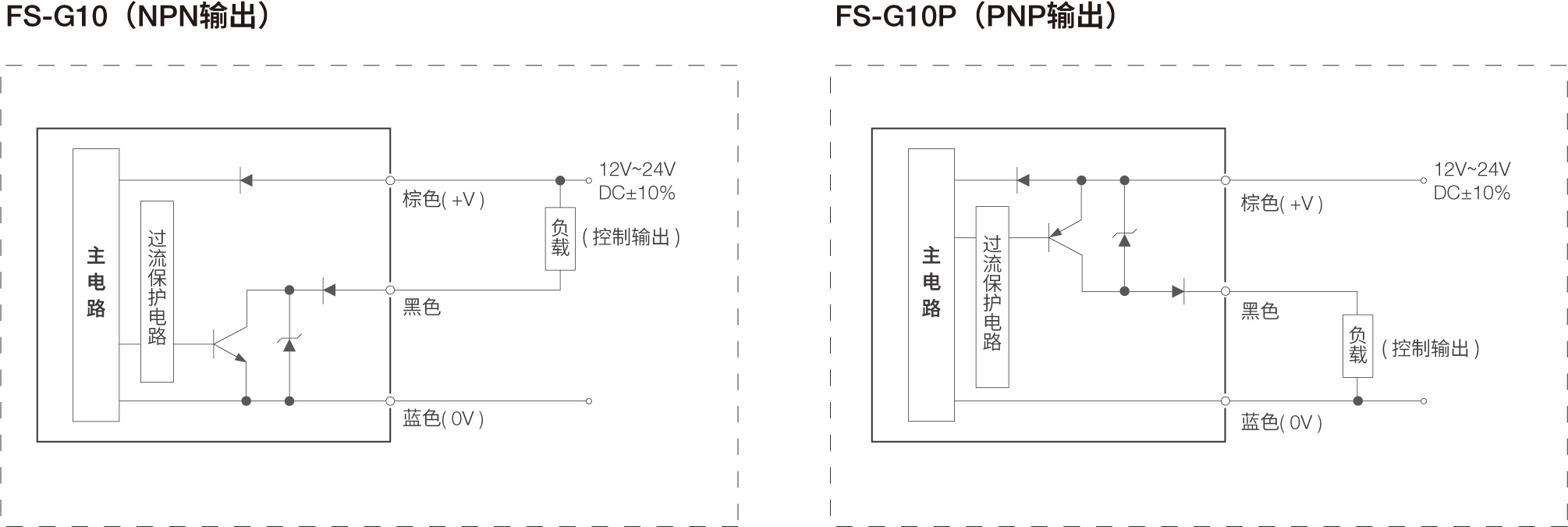

| 型号 | FS-G10 | FS-G10P |
| 输出类型 | NPN输出 | PNP输出 |
| 连接方式 | 电缆 | |
| 控制输出数 | 1 | |
| 光源 | 红色4元件 LED (波长：635nm) | |
| 响应时间 | 50μs / 250μs / 500μs / 1ms / 2ms / 8ms | |
| 输出切换 | 常开 / 常闭模式可选 | |
| 定时器功能 | 定时器关闭 / 关闭延迟 / 开启延迟 / 单次 | |
| 显示屏 | 7节8位数显（红色：4位，绿色：4位） | |
| 剩余电压 | NPN集电极开路24V或更小，最大100mA或更小 ( 独立使用 ) / 20mA或更小 ( 连接多个子模块 ) 残留电压：1V或更低 |
PNP 集电极开路24V或更小，最大100mA或更小 ( 独立使用) / 20mA或更小( 连接多个子模块 ) 残留电压：1V或更低 |
| 保护电路 | 电源逆接保护、输出过电流保护、输出浪涌保护 | |
| 电源电压 | 12V~24V DC±10%，波纹电压 ( P-P ) : 最大10% | |
| 消耗功率 | 正常：最大900mW (24V时，最大36mA ; 12V时，最大48mA ) 经济(ALL) ：最大 800mW (24V时，最大 32mA; 12V时，最大39mA ) 全节能：最大470mW (24V时，最大19mA; 12V时，最大23mA ) |
正常：最大950mW (24V时，最大39mA ; 12V时，最大52mA) 经济(ALL)：最大 850mW (24V时，最大 35mA; 12V时，最大44mA) 全节能：最大520mW (24V时，最大21mA; 12V时，最大26mA) |
| 环境光照 | 白炽灯: 30,000lx以下；日光: 10,000lx以下 | |
| 环境温度 | -20°C~+55°C ( 无冻结 ) | |
| 环境湿度 | 35~85%RH ( 无冷凝 ) | |
| 耐振动 | 10~55Hz双振幅1.5mm，X、Y、Z方向各2个小时 | |
| 耐冲击性 | 500m/s²，X、Y、Z方向各3次 | |
| 外壳材料 | PC+ABS | |
| 重量 | 约50g | |
