PW Series

White Spot Photoelectric Sensors


  • The PW series color sensors are different from traditional color sensors and can receive all wavelength ranges of visible light;
  • Has ultra-high color detection accuracy and stability, and is not affected by changes in environmental conditions that affect the detection results.
  • Product advantages
  • Parameter specifications

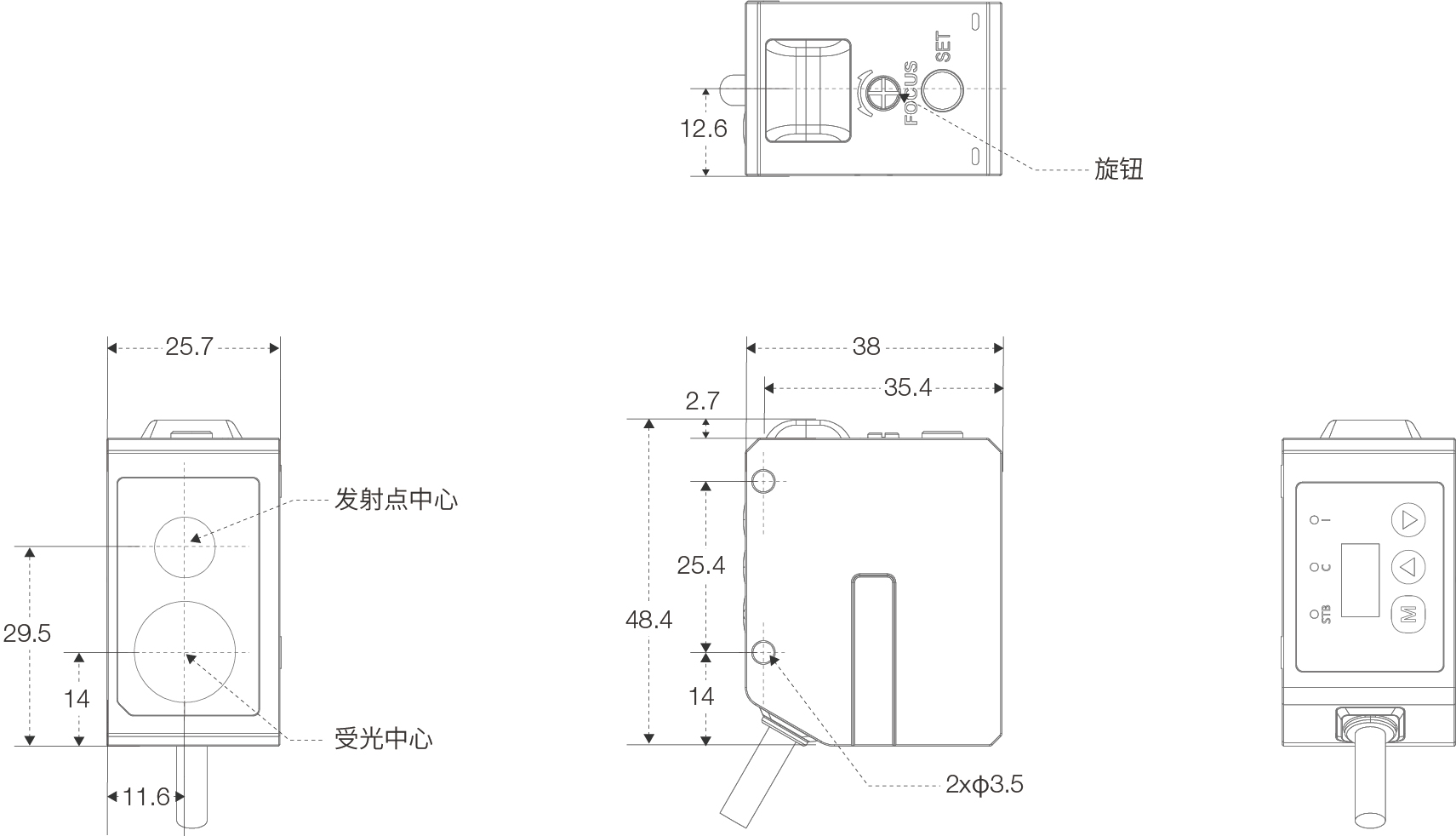

  • Product size

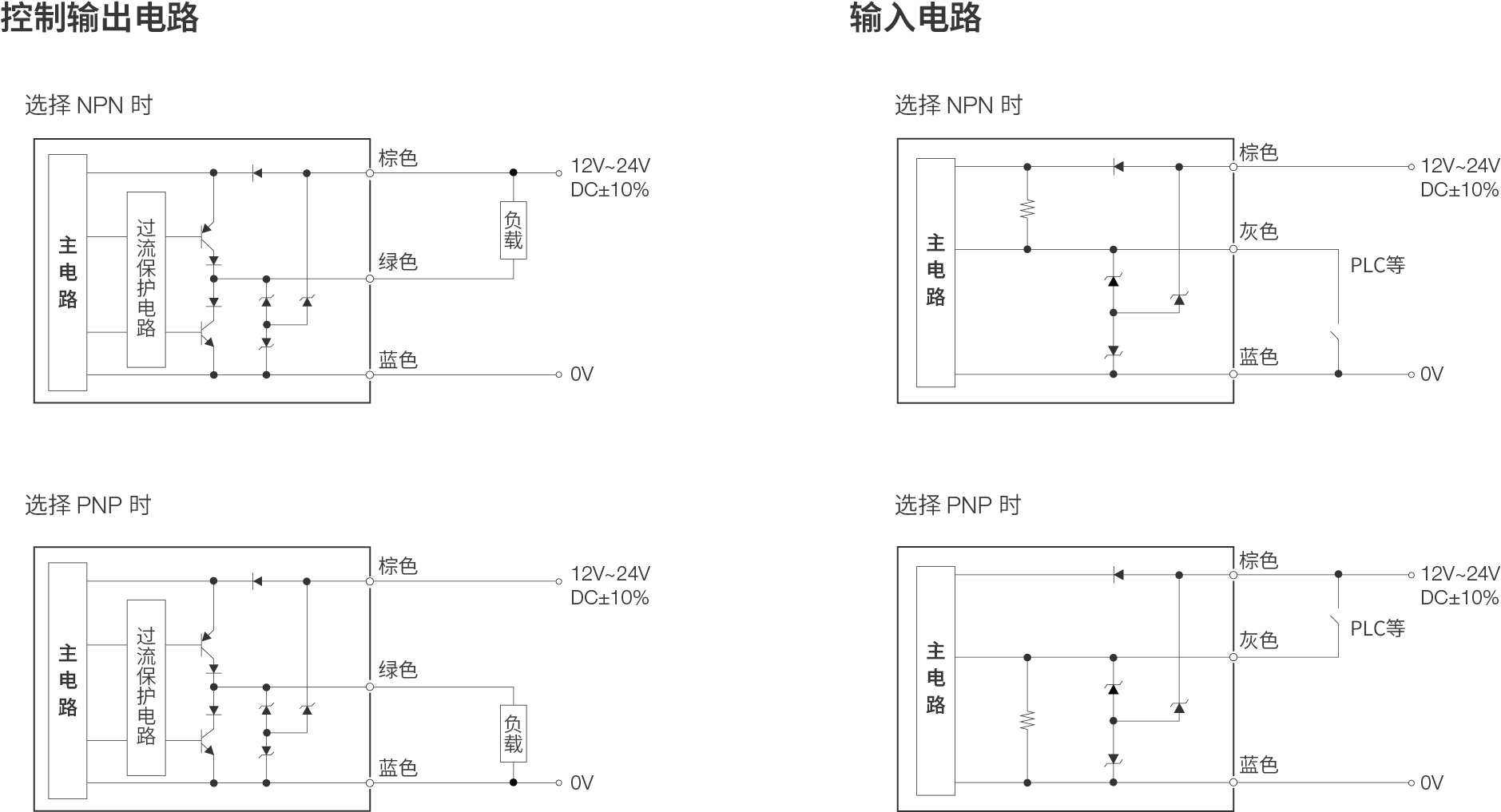

  • Wiring diagram
Product Features
can receive visible light in all wavelength ranges
01
Even if there are slight color differences,
can be easily detected
02
Detection distance 30~500mm optional
03
Response time can reach up to 200μ S
04
Stable detection of color differences in the appearance of workpieces

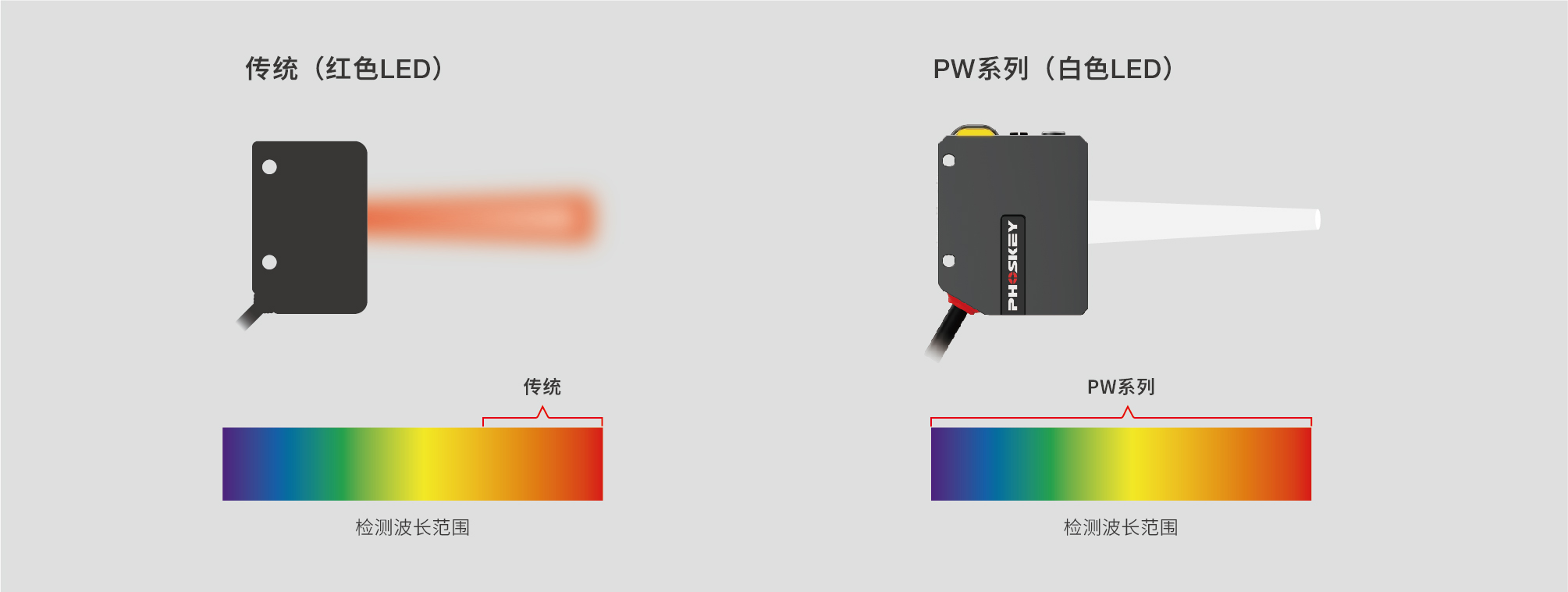

Traditional red LED photoelectric sensors can only detect differences in light intensity and can only receive light within the red wavelength range. The PW series uses a white LED light source, which can receive all wavelength ranges of visible light. It can detect subtle color differences accurately based on the appearance color of the detected object.



Ultra high color detection accuracy

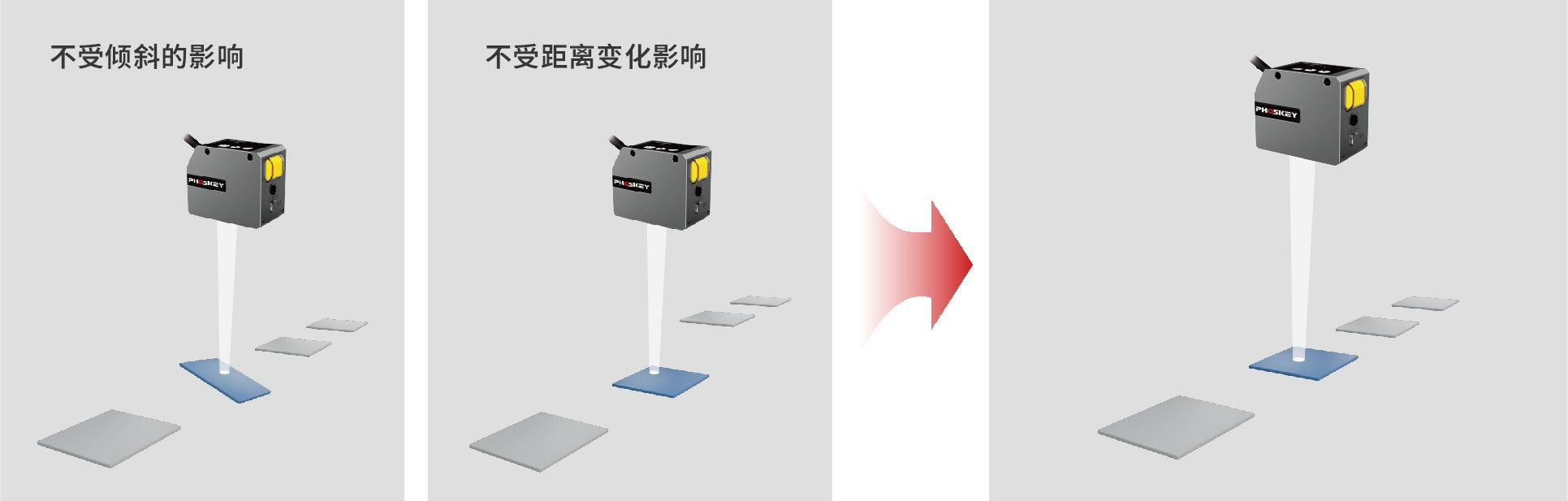

PW The series has ultra-high color detection accuracy and stability, which is not affected by changes in environmental conditions and detection results; White light dots; Even when the test object tilts or changes in distance, the difference in appearance color of the test object can still be stably detected.



类型
标准型
小光点型
 型号
PW-D70 PW-D150 PW-D500 PW-D70S
 检测距离
30 至 70 mm 70 至 150 mm 150 至 500 mm 30 至 70 mm
最小光点直径 50mm 时,约 Φ7mm 100mm 时,约 Φ4.5mm 250mm 时,约 Φ11mm
500mm 时,约 Φ20mm
50mm 时,约 Φ2 mm
响应时间 200µs / 1ms / 5ms / 10ms / 20ms / 100ms / 500ms
光源 白色 LED
降低相互干扰功能 不同频率设定最多 2 台
定时器 OFF / ON- 延时 / OFF- 延时 / 单次延迟
电源 电源电压 12 ~ 24V DC ±10% 脉动 P-P 10%以下
消耗电流 24V DC 时 60mA 以下(负载除外),12V DC 时 110mA 以下(负载除外)
 I/O
控制输出 NPN 集电极开路 / PNP 集电极开路 切换方式
30V DC 以下,50mA 以下,剩余电压 2V 以下
NO / NC 切换方式
外部输入 灵敏度设定 / 投光停止 切换方式
短路电流  NPN:1mA 以下 / PNP:2mA 以下
保护电路 电源逆接保护、电源电涌保护、输出过电流保护、输出电涌保护、输出逆接保护
 耐环
 境性





 防护等级
IP67( IEC60529 )
 使用环境温度
-20~+50°C(无冻结)
 使用环境湿度
35~85%RH(无凝结)
 耐环境光
白炽灯:10000 lux 以下 阳光:20000 lux 以下
 耐电压
  AC1000V 1分钟 所有电源连接端子与外壳之间
 耐振动
10~55 Hz 双向振幅 1.5 mm X、Y、Z 方向各 2 个小时
 耐冲击
1000 m/s²   X、Y、Z 方向各 6 次
 材质
外壳:锌铸件 (镀镍-铬)
指示灯盖:PC,按钮:硅胶
镜头盖:玻璃
电缆套管和电缆:PVC
光点调整刻度盘:SUS304
